How to Fix Yellow Light Blinking on Garage Door Sensor

You will face a lot of unknowns when you are dealing with any smart device including the garage door sensor. However, here in this guide, we will discuss mainly how to fix yellow light blinking on garage door sensor.

The majority of homeowners with garages also have built-in garage door sensors, which serve as safety devices to reduce the risk of accidents brought on by automatic garage door openers. Due to their sensitivity, it is crucial to regularly inspect them to determine if they are functioning effectively or not.

Once you see the green blinking light and the yellow light blinking on garage door sensors, you should check out what that means and how to fix it. In this article, we will walk you through what causes this issue on sensors and how to fix the yellow light blinking on garage door sensor.Yellow light blinking on Garage Door Sensor

Functions of Garage Door Sensor

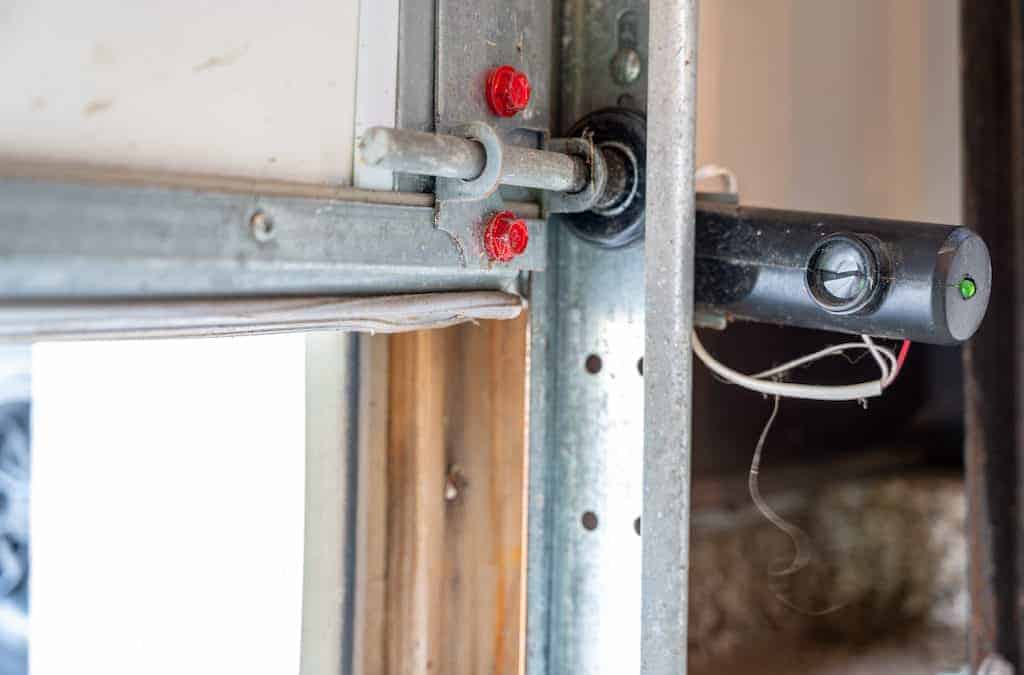

The sensor is constantly a few inches off the ground at the bottom of the garage door. The garage door is close to a sensor. There is a “photo-eye” system in this sensor. In doing so, it projects an infrared beam that is invisible out the other side of the garage door.

When you use the remote control to close the garage door, a signal is sent to these sensors. Their major objective is to stop anything from closing the garage door. Always keep in mind that only when the invisible infrared beam running on the garage door is good or fine will the garage door open.
These sensors also have issues because damage to them can occur occasionally.

When there is a problem with the sensor on the garage door, the yellow sensor light illuminates. As a result, there is a problem that prevents the garage door from closing. A flashing light then appears from the above control box after that. This suggests that there is a problem with the sensor because of the yellow light blinking on garage door sensor.

What does the Yellow light indicate on Garage Door Sensor?

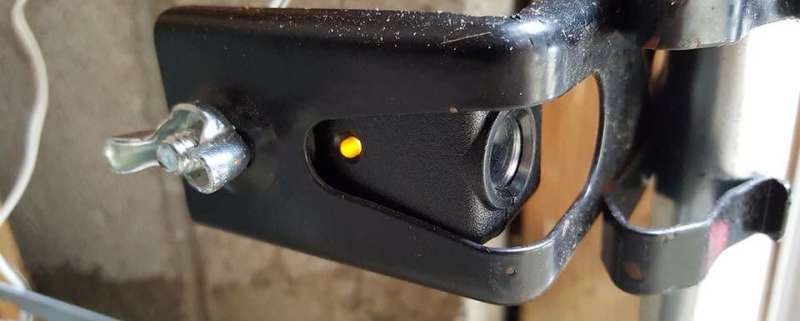

The garage door sensor’s yellow (amber) light turning on indicates that the sending sensor is functioning properly. Two sensors are included with garage door openers, one of which has a green LED light and the other of which has a yellow LED light. There is no obstruction between these two sensors, as shown by the yellow light.

Each garage door opener has two sensors: a transmitter with a green light and a receiver with no green light (with yellow light). In order for these sensors to work correctly, it is crucial that they are installed at the same height and that nothing blocks their path. The primary issues that could surround them are described below.

Why is my Garage Door Sensor blinking Yellow Light?

There are several reasons why a garage door sensor can be blinking yellow.
Some of them are:

  • Misaligned sensors are the most common.
  • Dirty sensor.
  • The sensor path is obstructed by something.
  • The power supply for the sensors has a problem.
  • On either one or both sensors, LED lights are not turning on.
  • Too much moisture was allowed to contact your sensors.
  • Loose bracket or screw on the blinking sensor.
  • Faulty or old sensors.
  • Damaged or disconnected wires.

Once the causes of a problem are known, then it’s easier to find a lasting solution to the issue. Yellow light blinking on Garage Door Sensor

By blocking the sensors with a cardboard box that is taller than 6 inches, you can test your garage door sensors. If the door closes fully on the box, your sensors are not working and this issue must be addressed immediately.

Each sensor will usually have a light. The red light on the other will indicate that there is no obstruction between the sensors and that they are “seeing” each other. One will have a green light to indicate that the devices are powered on.Yellow light blinking on Garage Door Sensor

How to Fix Yellow Light Blinking on Garage Door Sensor

Your garage door won’t close until you fix the yellow light on the sensor. The security reverse sensors are out of alignment whenever a yellow light appears on the door sensor.

To fix the yellow light blinking on garage door sensor, you must clean the sensor’s lens and install the sensors properly first, as they are lined up together perfectly. If you are having issues with your garage sensors, you can try to resolve it by following the steps below:

Clear all items blocking the Safety Sensors

When the opener light is green and blinking, there is likely a blockage or alignment issue with the safety sensors. However, malfunctioning safety sensors and wiring can also make the lights on garage door openers flash.

In order to prevent the garage doors from closing, these sensors use an infrared beam of light to identify objects that are present in the space between them.

The door will not close if something is in the way of these two sensors because it will block the infrared beam of light. Therefore, it is essential to get rid of everything that stands in their way.

This should fix the yellow light blinking on garage door sensor, if it doesn’t, proceed to the next fix below.

Check the Sensor Alignment

If there is nothing obstructing the garage door sensors, the alignment issue is probably to blame. When the garage door sensors’ solid lighting is not visible, there is possibly a problem with the sensors being out of alignment. Fixing this problem is quite simple.

You must first obtain a wrench and a tape measure. Using these tools, carry out the following:

  • Make sure your garage door sensors are at least 6 inches off the ground first. The precise height at which this garage sensor is situated should be measured and noted (for instance, 6.55 inches).
  • Go to the second sensor next and take an accurate height reading. You will need to make adjustments if the height is not exactly the same as the other sensor.
  • Finally, to adjust the second sensor, just use the wrench to loosen the wing nut and raise the sensor to the same level as the first. (For example, 6.55 inches).

After completing these instructions, the garage door opener ought to function normally and a beam of infrared light ought to emerge. However, if the issue persists, the green light is blinking, and the yellow light is still on, you should try alternative options.

One possible reason is a spiderweb or other obstruction of the sensor lens by dirt or debris. If you see any dirt on the lens, just clean it, and you should be good to go.

The yellow light blinking on garage door sensor must have been fixed! We suggest this particular kind of Sensors Beam Eyes for 41A5034 if you wish to get new garage door sensors.

Change all broken or damaged Sensor Wires

Garage door sensors should function normally now that you have levelled them at the same height and cleaned the lens surfaces. However, if the issue with the yellow light persists, there might be a problem with the wiring.

Most of the wiring that is run through the walls won’t be visible to you, but you can inspect the wires that you can see.

Examine the two wires going into the two sensors to make sure they are not disconnected or damaged. If you notice that the wires are broken, just reconnect them.

But, turn off your garage door opener first. You will need to buy new wires if the old ones are worn out or damaged. Changing the damaged wires should have fixed the yellow light blinking on garage door sensor now.

Change the old sensors to new ones

The sensors are definitely the issue if you’ve examined the wiring and everything is in order with the wires but the garage door opener still isn’t working. Like any electronic gadget, sensors can break down after prolonged use. The most prevalent reasons are old age, being near water, and spending a lot of time in the sun.

You don’t need any prior experience to complete the process of replacing outdated sensors with new ones. When you have a wrench and new garage door sensors, you are prepared to replace them.These sensors are readily available on Amazon at any home improvement store, and they are cheaply priced. The following steps are involved in replacing the sensors:

  • Unplug your garage door opener immediately.
  • Use a wrench to remove the wing nuts from your garage door sensors.
  • Simply unplug the sensors and remove them.
  • The new sensors must now be attached to the same location.
  • Ensure that they are exactly the same height.
  • Finally, attach the sensors to the garage door by tightening the wing nuts on both of them with the tool.

Your garage door opener should operate normally now that the old sensors have been changed out for new ones. This excellent video will also show you how to identify issues with garage sensors and how to understand them better. The yellow light blinking on garage door sensor should no longer flicker.

To prevent accidents, all garage door openers must have safety sensors.
It is crucial that they function properly as a result. There are two sensors, where one is a transmitter and the other a receiver. One of the sensors has a green LED light while the other has a yellow LED light.

If the green LED light starts to flash, there is a garage door sensor issue that needs to be fixed. You could see the cause of this issue, what it stands for, and a solution in this article. We sincerely hope that this article has been useful to you. If you have any more inquiries, please feel free to contact us or leave a comment below.
